Description
SPECIFICATIONS
Bluetooth solution
JL
Chip
AD6973D
Stereo type
Bluetooth earphones
ANC/ENC
Supported (Single Mic ENC Software Algorithm)
Waterproof grade
IPX4
Track system
Dual Channel
The control mode
Touch
Bluetooth version
5.4
Support Bluetooth profile
a2dp\avdp\avctp\avrcp\hfp\spp\smp\att\gap\gatt\rfcomm\sdp\l2cap
Bluetooth working frequency
2.402GHz ~ 2.480GHz
(TYP)
-87dBV
Bluetooth range
>10 meters
Power amplifier type
Built-in Clip
Frequency response
20Hz~20KHz
Speaker type
φ14.2MM/32 Ohm
Antenna
Ceramic Antenna
Charging box battery
Size: 801640, Capacity: 500mAh
Headset battery
Size: 581013, Capacity: 50mAh
The number of times the charging box charges the headset
Approximately 3.5 times
Overvoltage protection (Charging box)
Supported (Above 6V no charging, below 14.5V no damage)
Overcurrent protection (Charging box)
Supported
Hall switch
Not Supported
Wireless charging
Not Supported
PTC
Not Supported
NTC
Not Supported
Music time
Approximately 5 hours (80% volume)
Talk time
Approximately 3.5 hours (80% volume)
Leakage current after shutdown≤15UA
Outside the case: 2UA / Inside the case: 3.7UA
Charging input criteria
Type-C USB/5V/<0.5A (Charging case), Pop USB/5V/10mA (Single)
Charging time
Charging case approximately 2hours，Earphones1.5hours
Temperature/humidity range
Working temperature: 0~40℃, Storage temperature: -10~45℃, Working humidity: <70%
Enhanced Bass Performance
It is equipped with a second-generation bass enhancement algorithm that significantly improves the bass volume, providing a fuller and deeper listening experience.
Advanced Amplifier Chips
Each earbud contains a primary chip and a dedicated amplifier chip, which enhances the sound quality and delivers an immersive audio experience typically reserved for high-end audio systems.

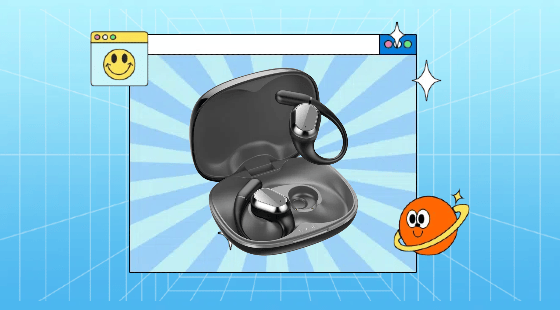

Skin-Friendly Design
The OWS earphone features skin-friendly earhooks made from liquid silicone, ensuring a comfortable fit that’s gentle on the ears for all-day wear.
